Joranalogue

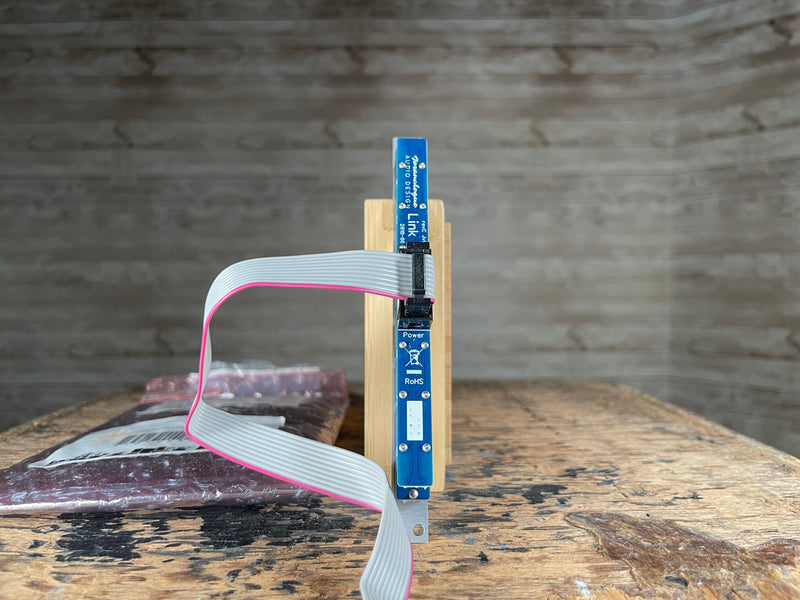

Joranalogue Link 2 Multiples Module Used

$89

Joranalogue Link 2 distribution module with buffered outputs. Send one signal to six outputs, or two signals to three outputs each. 2hp x 40mm.

(Used)

Manufacturer Info:

'Multiples' are the classic solution to a common problem in modular synthesisers: how to distribute one output signal to multiple inputs. Simple passive multiples consist of several sockets, wired together.

Link 2 is a buffered multiples module. Each output is independently buffered using active electronics. This avoids many of the problems with passive multiples: signal cuts when patching cables, loading effects when driving many inputs etc.  The high-end components provide exceptionally low noise and distortion, making Link 2 suitable for audio, CVs and gates/triggers. And unlike most buffered multiples modules currently available, it retains the accuracy of pitch control voltages to the last cent.

With only the top input socket in use, the signal is sent to all 6 outputs. Plugging a cable into the bottom input socket separates Link 2 into dual 3-way multiples, adding flexibility to your patching.

Width: 2HP
Depth: 40mm
Power: 20mA @ +12V / 20mA @ -12V
